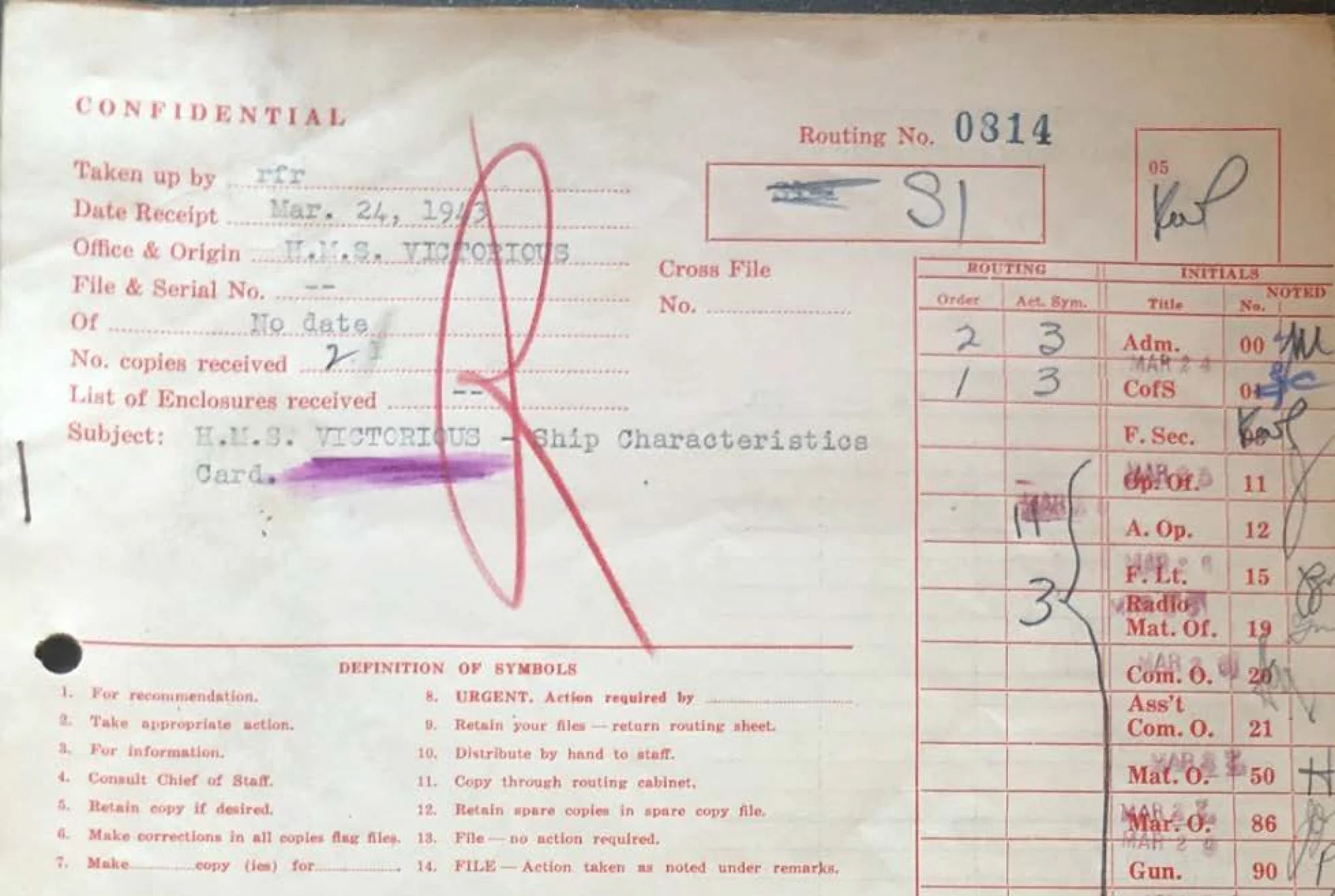

This is the United States Navy Ship Characteristics Card (specifications summary) assembled while HMS Victorious was in Hawaii, undergoing final modifications to join USS Saratoga in the Solomon Islands as “USS Robin”.
Transcript in progress.

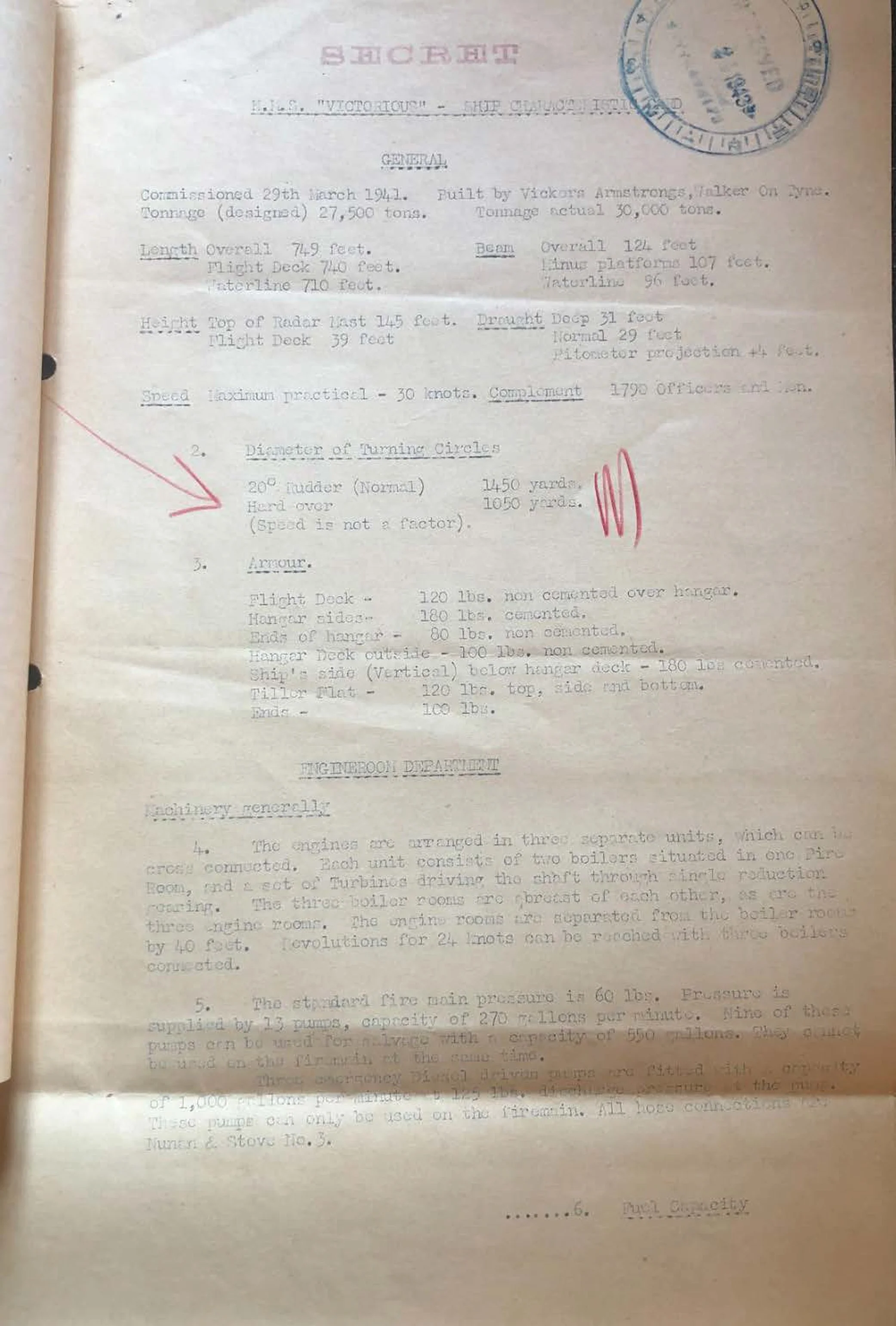

SECRET
H.M.S. “VICTORIOUS” - SHIP CHARACTERISTIC CARD
GENERAL
Commissioned 29th March 1941. Built by Vickers Armstrong,Walker onTyne.
Tonnage (designed) 27,500 tons. Tonnage actual 30,000 tons.
Length Overall 749 feet. Flight Deck 740 feet. Waterline 710feet.
Beam Overall 124 feet. Minus platforms 107 feet. Waterline 96 feet.
Height Top of Radar Mast 145 feet. Flight Deck 39 feet.
Draught Deep 31 feet. Normal 29feet. Pitometer projection +4 feet.
Speed Maximum Practical - 30 knots.
Complement 1790 Officers and men.
2. Diameter of Turning Circles
20 degrees Rudder (Normal) 1450 yards.
Hard-over 1050 yards
(Speed is not a factor)
3. Armour
Flight Deck - 120 lbs. non cemented over hangar
Hangar sides - 180 lbs. cemented.
Ends of hangar - 80 lbs. non cemented.
Hangar Deck outside - 100 lbs. non cemented
Ship’s side (Vertical) below hangar deck - 180 lbs cemented.
Tiller Flat - 120 lbs top, side and bottom.
Ends - 100 lbs.
ENGINEROOM DEPARTMENT
Machinery generally
4. The engines are arranged in three separate units, which can be cross-connected. Each unit consists of two boilers, situated in one Fire Room, and a set of Turbines driving the shaft through single redaction gearing. The three boiler rooms are abreast of each other, as are the three engine rooms. The engine rooms are separated from the boiler rooms by 40 feet. Revolutions for 24 knots can be reached with three boilers connected.
5. The standard fire main pressure is 60 lbs. Pressure is supplied by 13 pumps, capacity of 270 gallons per minute. Nine of these pumps can be used for nalvage with a capacity of 500 gallons. They cannot be used on the firemain at the same time.
Three emergency Diesel driven pumps are fitted with a capacity of 1,000 gallons per minute at 125 lbs. discharge pressure at the pump. These pumps can only be used on the firemain. All hose connections are Nunan & Stove No.3.

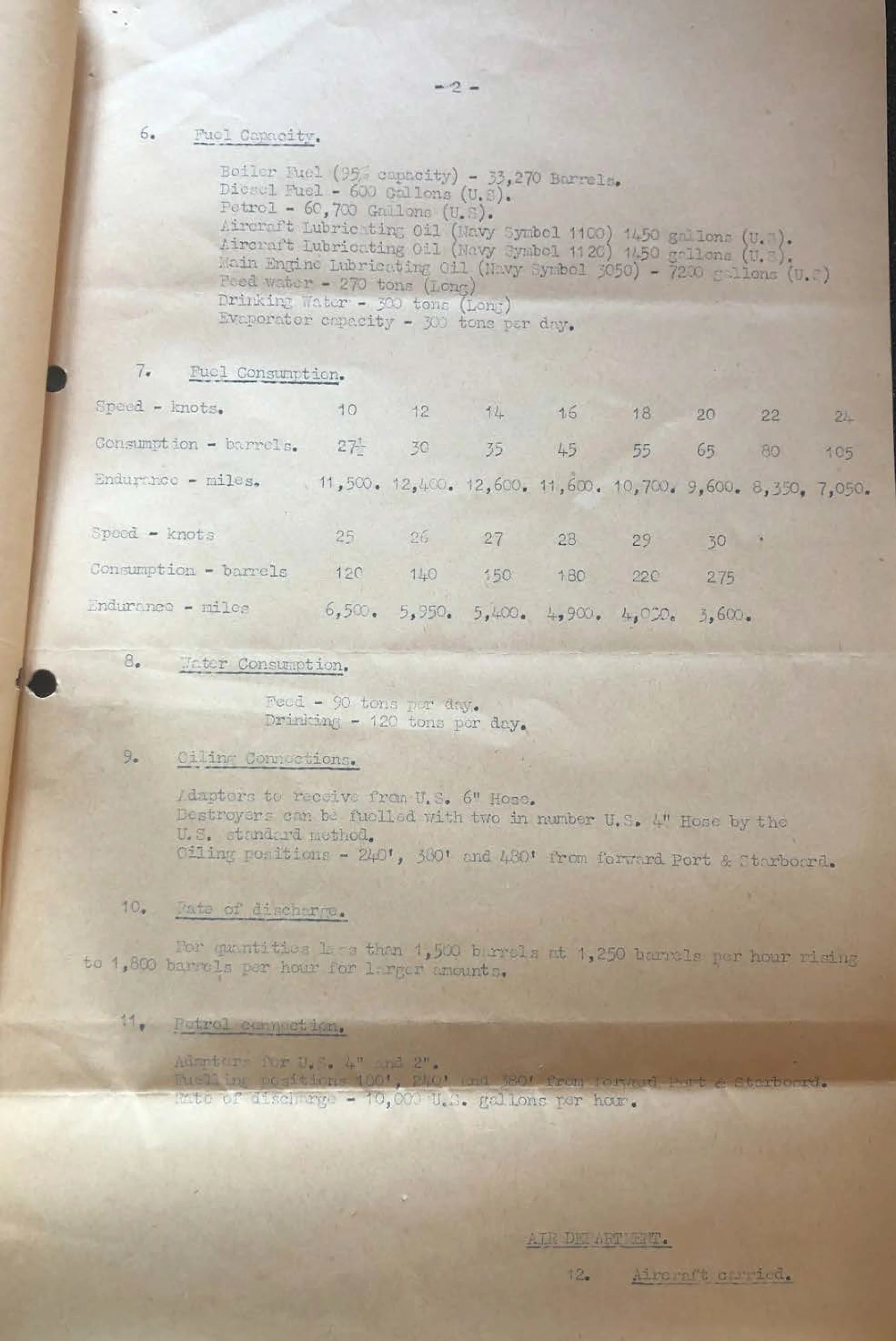

-2-
6. Fuel Capacity
Boiler Fuel (95% capacity) - 33,270 Barrels.
Diesel Fuel - 500 Gallons (U.S.).
Petrol - 60,700 Gallons (U.S.).
Aircraft Lubricating Oil (Navy Symbol (1100) 1450 gallons (U.S.).
Aircraft Lubricating Oil (Navy Symbol (1120) 1450 gallons (U.S).
Main Engine Lubricating Oil (Navy Symbol 3050) - 7200 gallons (U.S.).
Feed water - 270 tons (Long)
Drinking Water - 300 tons (Long).
Evaporator capacity - 300 tons per day.
7. Fuel Consumption
Speed - knots. 10 12 14 16 18 20 22 24
Consumption - barrels 27.5 30 35 45 55 65 80 105
Endurance - miles. 11,500 12,400 12,600 11,600 10,700 9,600 8,350 7,030
Speed - knots 25 26 27 28 29 30
Consumption - barrels 120 140 150 180 220 275
Endurance - miles 6,500 5,950 5,400 4,900 4,050 3,600
8. Water Consumption.
Feed - 90 tons per day
Drinking - 120 tons per day
9. Oiling Connections.
Adapters to receive from U.S. 6” Hose.
Destroyers can be fuelled with two in number U.S. 4” Hose by the U.S. standard method.
Oiling positions - 240’, 380’ and 480’ from forward Port & Starboard.
10. Rate of discharge.
For quantities less than 1,500 barrels at 1,250 barrels per hour rising to 1,800 barrels per hour for larger amounts.
11. Petrol connection.
Adapters for U.S. 4” and 2”.
Fuelling positions 180’, 240’ and 380’ from Forward Port & Starboard.
Rate of discharge - 10,000 U.S. gallons per hour.

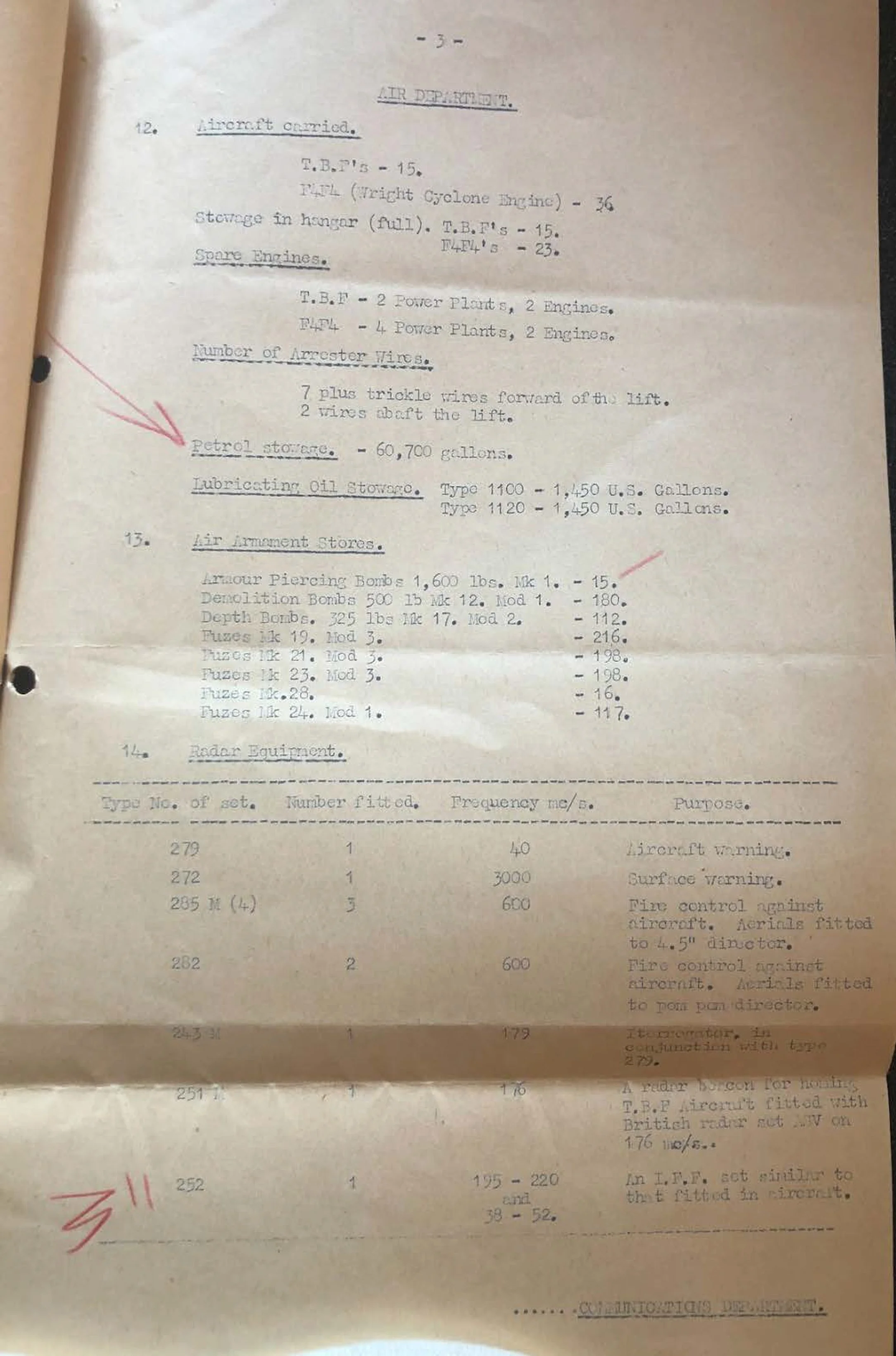

-3-
AIR DEPARTMENT
12. Aircraft carried.
T.B.F.’s 15.
F4F4 (Wright Cyclone Engine) - 36.
Stowage in hangar (full). T.B.F’s - 15, F4F4’s - 23.
Spare Engines.
T.B.F. - 2 Power Plants, 2 Engines.
F4F4 - 4 Power Plants, 2 Engines.
Number of Arrester Wires.
7 plus trickle wires forward of the lift.
2 wires abaft the lift.
Petrol stowage. - 60,700 gallons.
Lubricating Oil Stowage.
Type 1100 - 1,450 U.S. Gallons.
Type 1120 - 1450 U.S. Gallons.
13. Air Armament Stores.
Armour Piercing Bombs 1,600 lbs. Mk 1. - 15.
Demolition Bombs 500 lb Mk 12. Mod 1. - 180.
Depth Bombs. 325 lbs Mk 17. Mod 2. - 112.
Fuzes Mk 19. Mod 3. - 216.
Fuzes Mk 21. Mod 3. - 198.
Fuzes Mk 23. Mod 3. - 198.
Fuzes M.28. - 16.
Fuzes Mk 24. Mod 1. - 117.
14. Radar Equipment.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Type No. of set. Number fitted. Frequency me/s. Purpose
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
279 1 40 Aircraft warning.
272 1 3000 Surface warning.
285 M(4) 3 600 Fire control against aircraft.
Aerials fitted to 4.5” director.
282 2 600 Fire control against aircraft.
Aerials fitted to pom pom director.
243 M 1 179 Iterragator, in
conjunction with type 279.
251 M 1 176 A radar beacon for homing
T.B.F Aircraft fitted with
British radar set MIV on
176 me/s.
252 1 195 - 220 An I.F.F. set similar to
and 38 - 52. that fitted in aircraft.
